Determining light pole wind resistance starts with a practical question: What is the wind load capacity of a standard light pole? There is no universal answer. Capacity changes with pole height, shaft diameter, steel grade, wall thickness, luminaire size, and foundation design. A six-metre pole with a compact LED fixture behaves differently from a twelve-metre pole carrying a large sign.
Professional design normally follows recognized standards, not rough supplier estimates. ASCE/SEI 7-22 defines wind hazards, exposure categories, gust effects, and pressure procedures for U.S. projects. AASHTO’s specifications for structural supports address roadside luminaires, fatigue, strength, and serviceability. In Europe, EN 40-3-1 provides guidance for calculating wind loads on lighting columns. These references emphasize projected area, drag coefficients, local wind speed, and topographic conditions. The smallest overlooked detail can control the result.
Field experience shows that the shaft is not always the weakest component. Base plates, anchor bolts, welds, and concrete foundations may govern the final capacity. Wind pressure also rises rapidly with velocity because it is proportional to the square of wind speed. For example, a 30 m/s wind produces roughly twice the pressure of a 21 m/s wind, before other factors are considered. That difference feels abstract until a fixture starts rotating during a storm. A reliable assessment should verify the entire load path, use current site-specific wind data, and include installation tolerances. Preliminary tables are useful, but they are not a substitute for an engineer’s signed calculation. Some assumptions remain uncertain. Good design makes those uncertainties visible.

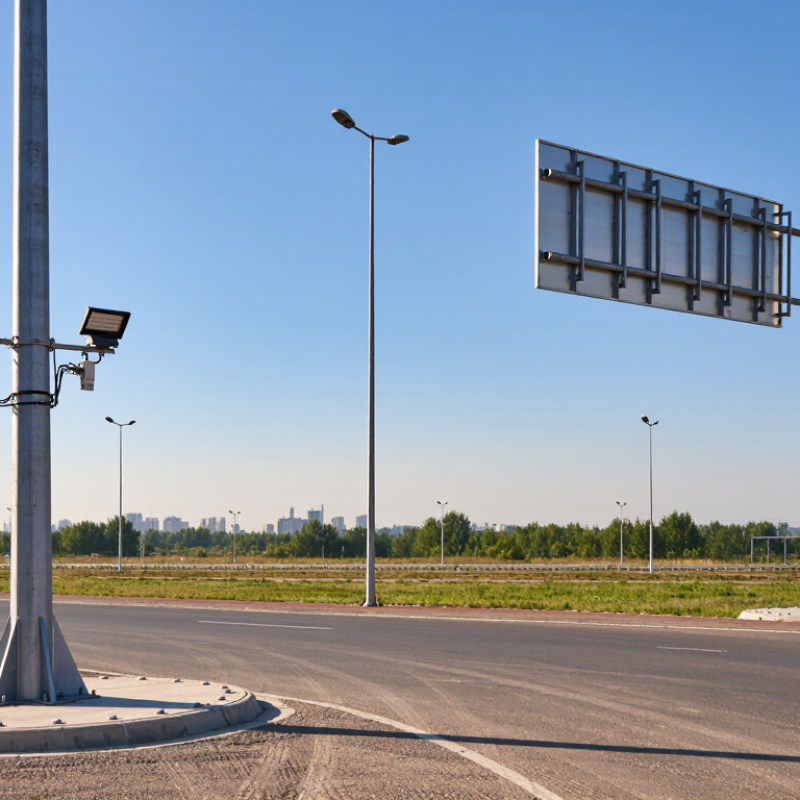

How to Determine a Standard Light Pole Wind Load Capacity?
Understanding the Factors That Affect Light Pole Wind Load Capacity
Determining a standard light pole wind load capacity starts with the site, not the pole catalog. Wind pressure changes with basic wind speed, terrain exposure, pole height, and local topography. An open coastal site can impose far greater demand than a sheltered urban street. Designers should also consider gust effects, seasonal weather, and the intended service life. The answer is not one universal number.
Calculate the projected area of the pole, luminaire, bracket, and attached equipment. Each surface interacts with wind through its shape and drag coefficient. A wide fixture mounted near the top creates a larger overturning moment. That moment increases rapidly as mounting height rises. Pole diameter, taper, wall thickness, steel grade, welds, and access openings affect resistance. Foundation size and soil strength matter equally. A strong shaft can still fail when its base rotates or surrounding soil shifts.
Use the applicable structural code and verified wind maps for the installation location. An engineer should check bending, shear, deflection, vibration, and fatigue. Field inspection should record corrosion, loose anchors, cracks, and unauthorized attachments. Small details matter. A neat calculation can still hide poor assumptions about terrain or future equipment. Conservative inputs, clear records, and independent review improve confidence. Capacity should be documented for the complete pole system, including its foundation.
The following table summarizes the main variables used for a preliminary light-pole wind-load assessment. Final pole and foundation design should be verified against the governing local structural code, site conditions, material properties, and applicable safety factors.
| Factor | Typical Input or Range | How It Affects Wind Load | Design Consideration |
|---|---|---|---|
| Basic design wind speed | 80–120 mph (36–54 m/s), depending on location | Wind pressure increases approximately with the square of wind speed. | Use the code-required basic wind speed for the exact project location, risk category, and return-period requirements. |
| Velocity pressure | q = 0.00256V² psf when V is in mph | Represents the dynamic pressure generated by the design wind speed before other coefficients are applied. | At 100 mph, the simplified velocity pressure is approximately 25.6 psf. |
| Exposure category | Open terrain, suburban terrain, or dense urban terrain | Terrain roughness changes wind speed and pressure distribution over the pole height. | Open areas generally produce higher effective wind exposure than areas with substantial buildings or vegetation. |
| Pole height | 20–40 ft (6.1–12.2 m) for many area-lighting applications | Wind moment increases as the horizontal lever arm increases. | Higher poles require greater shaft strength, larger foundations, or both. |
| Pole projected area | Depends on shaft diameter, taper, arms, handholes, and attachments | Greater exposed area produces greater horizontal wind force. | Calculate shaft area and accessory area separately when their shapes or elevations differ. |
| Drag coefficient | Approximately 1.0–1.3 for many circular or irregular exposed components | Accounts for the shape of the pole, luminaire, bracket, and other attachments. | Use code-based or tested coefficients where available; do not assume all components have the same coefficient. |
| Luminaire and accessory area | Commonly 1–6 ft² per fixture, excluding special signs or banners | Attachments near the top of the pole can create substantial overturning moment. | Include luminaires, arms, sign panels, cameras, banners, and maintenance accessories in the calculation. |
| Gust and dynamic effects | Specified by the applicable structural standard | Short-duration wind gusts can produce higher design effects than a steady wind assumption. | Use the required gust, importance, directionality, and topographic factors rather than applying an arbitrary allowance. |
| Material and section properties | Steel, aluminum, or other approved structural material | Yield strength, wall thickness, diameter, taper, and section modulus determine bending resistance. | Check yielding, local buckling, fatigue, welds, connections, door openings, and corrosion loss. |
| Foundation and soil conditions | Concrete diameter, embedment depth, reinforcement, and soil parameters | Wind load is transferred into the foundation through base shear and overturning moment. | A pole with adequate shaft capacity can still fail if the foundation or soil cannot resist overturning. |
| Calculation Item | Illustrative Value | Calculation or Result | Interpretation |
|---|---|---|---|
| Design wind speed | 100 mph | Selected example value only | The actual design wind speed must come from the applicable local code and site classification. |
| Simplified velocity pressure | 25.6 psf | 0.00256 × 100² = 25.6 psf | This is a preliminary pressure before project-specific code coefficients. |
| Pole height | 30 ft | Vertical reference dimension | The top-mounted equipment acts at a longer lever arm than lower shaft areas. |
| Projected shaft area | 12.6 ft² | Illustrative average projected width × pole height | A tapered shaft should be divided into segments for a more accurate calculation. |
| Projected accessory area | 3.5 ft² | Example luminaire and mounting-arm area | Actual manufacturer-neutral geometry should be measured or taken from approved drawings. |
| Assumed drag coefficient | 1.2 | Illustrative coefficient for preliminary screening | Final coefficients should reflect the actual shape and the governing design standard. |
| Approximate shaft wind force | Approximately 387 lb | 25.6 × 1.2 × 12.6 | Represents a simplified distributed force on the exposed shaft. |
| Approximate accessory wind force | Approximately 108 lb | 25.6 × 1.2 × 3.5 | Represents a simplified force acting near the top of the pole. |
| Approximate base shear | Approximately 495 lb | 387 + 108 | Used as a preliminary horizontal reaction before code factors and load combinations. |
| Approximate overturning moment | Approximately 9,030 lb-ft | (387 × 15) + (108 × 30) | The actual moment requires accurate force centroids, coefficients, gust effects, and load combinations. |
| Verification Area | Minimum Information Required | Pass Condition |
|---|---|---|
| Wind pressure and load combinations | Design wind speed, exposure, importance, directionality, gust, and applicable load combinations | Calculated design actions comply with the governing structural standard. |
| Pole shaft strength | Outside diameter, taper, wall thickness, steel grade, section modulus, and openings | Factored bending and shear demands do not exceed the permitted structural capacities. |
| Connection and attachment strength | Arm connection, luminaire mounting, welds, bolts, and access-door details | All connections resist the calculated force, moment, and fatigue effects. |
| Foundation and soil resistance | Foundation dimensions, reinforcement, soil bearing, lateral resistance, and groundwater conditions | Foundation rotation, sliding, bearing, uplift, and overturning remain within allowable limits. |
| Serviceability and durability | Deflection limits, vibration, corrosion allowance, drainage, and inspection requirements | The pole remains functional and durable throughout its intended service life. |
No. Capacity depends on wind speed, terrain, pole height, topography, and service life. An exposed coastal site may demand much more strength than a sheltered street. One universal number is misleading.
Wind affects the shaft, luminaire, bracket, banners, cables, and attached equipment. Each surface has its own shape and drag behavior. A wide fixture near the top creates a larger overturning moment.
Greater height increases leverage against the foundation. A tall pole with a large fixture can create high base forces. Small calculation errors grow quickly. The pole may look rigid but still rotate below ground.
Diameter, taper, wall thickness, steel strength, welds, and access openings all matter. Corrosion reduces available thickness over time. A small opening can become a serious weak point.
Engineers should check soil bearing, sliding, rotation, and concrete breakout. Anchor tension must match the calculated base moment. Weak or saturated soil can reduce resistance sharply. Do not guess.
Reviewers should consider wind pressure, gusts, dead weight, vibration, and combined loading. They should check bending, shear, buckling, welds, anchor rods, and base plates. Fatigue deserves attention too.
Not necessarily. Actual height, fixture size, bolt condition, and foundation geometry may differ. Field inspection should compare the built pole with approved drawings. Clean spreadsheets can hide bad assumptions.
Inspectors should record corrosion, loose nuts, cracks, settlement, damaged welds, and unauthorized attachments. Severe storms justify closer inspection. Some assumptions remain uncertain. Mark them for follow-up.
Determining the wind load capacity of a standard light pole requires more than using a single fixed value. The design must consider pole height, shape, material, diameter, lighting equipment, cable arrangements, exposure category, wind speed, terrain, and local weather conditions. The question “What is the wind load capacity of a standard light pole?” can only be answered accurately after these factors and the applicable design standards have been identified for the installation site.
Engineers calculate wind pressure and convert it into the total force and bending moment acting on the pole, including loads from luminaires and accessories. They then evaluate the pole’s structural strength, foundation stability, soil conditions, anchor bolts, and base connections. Appropriate safety factors are applied to account for uncertainties, fatigue, and extreme weather events. Finally, a qualified engineering review should verify that the complete pole, foundation, and anchoring system meet the required performance criteria before installation.
