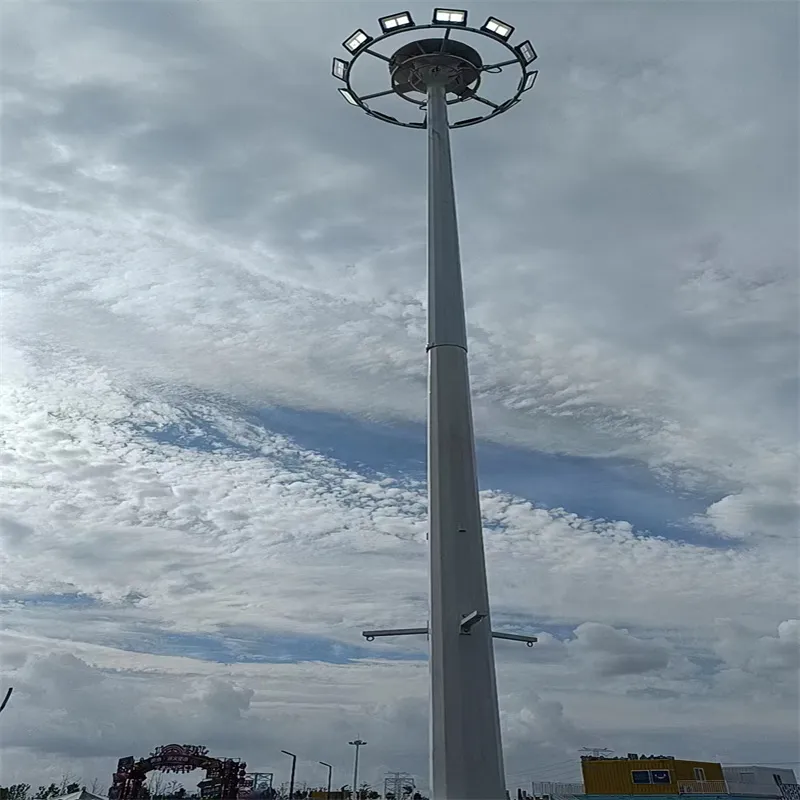

18m Stadium High Mast Light Pole Tower with Lifting System

1 / 5

18m Stadium High Mast Light Pole Tower with Lifting System

Customization:	Available
Color Temperature:	Warm White
Lamp Body Material:	Aluminum

Send Inquiry

Product Description

Basic Specifications

Model NO.

DX-0078

Pole Height

15-35m

Power Range

400W to 2000W

IP Rating

IP66

Input Voltage

220V

Certification

CCC, CQC, FCC, SASO, CE, SGS, ROHS

Material

High-quality Steel Q235/Q345

Surface Treatment

Hot Dipped Galvanized

Projection Distance

80m

Production Capacity

50,000 PCS/Month

Key Features & Experience

◈ Extensive production experience in galvanized light poles.

◈ High capacity: Manufacturing 3M-35M poles at 20,000 units/month.

◈ Integrated vertical production lines for superior quality and cost control.

◈ Advanced automatic submerged arc welding technology.

◈ Dual protection: Hot-dip galvanizing and professional powder coating.

◈ Wind resistance capacity up to 36.9m/s.

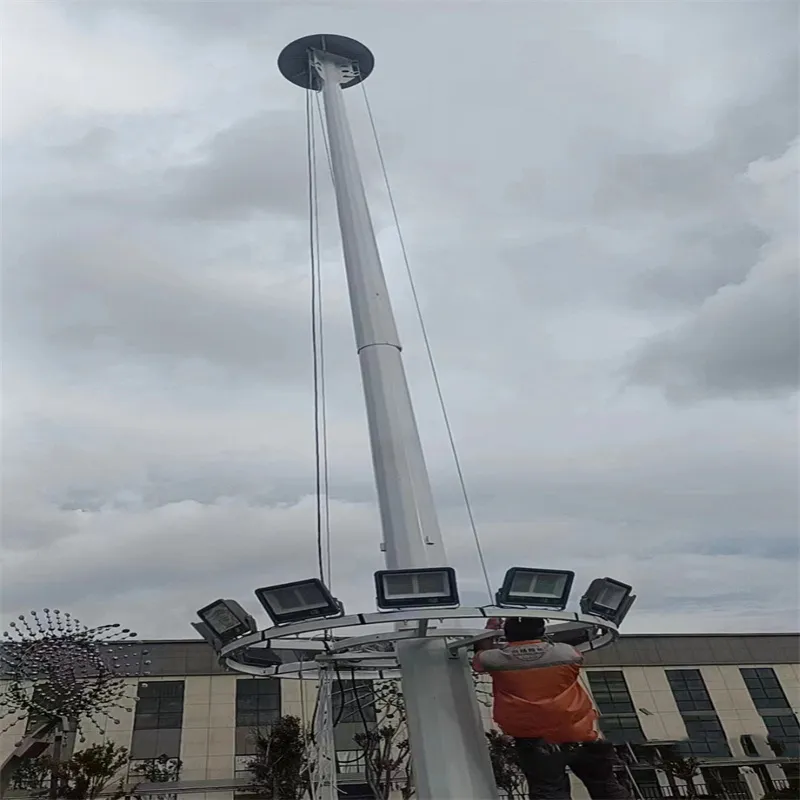

Stadium High Mast Lighting System Details

Technical Parameters

Height Options	From 18m to 50m
Applications	Airport, seaport, plaza, stadium, square, highway station, street way, etc.
Shapes	Round, Multi-pyramidal, Column form, polygonal or conical
Lighting Source	400W - 5000W high pressure sodium or LED flood lights
Lifting System	Inner lifter with 3~5 m/min speed; includes anti-break and manual operation backup
Control System	Time and light control options; supports full-load and partial lighting modes
Standard Compliance	Welding: GB11345 Grade II; Galvanizing: ASTM A 123; Earthquake: Grade 8
Durability	Anti-corrosion lifetime ≥ 20 years; Zinc coating thickness ≥ 86um
Thickness	6 mm to 20 mm

Manufacturing Process

Step-by-Step Production: Raw material test → Cutting → Molding/Bending → Longitudinal Welding → Dimension Verification → Flange Welding → Hole Drilling → Calibration → Deburring → Galvanization or Powder Coating → Recalibration → Threading → Packaging

Frequently Asked Questions

● What materials are used for the high mast poles?

We use high-quality steel such as Q345B/A572 (minimum yield strength 345n/mm2) and Q235B/A36 (minimum yield strength 235n/mm2).

● How long is the anti-corrosion lifespan?

The poles undergo hot-dip galvanization following ASTM A 123 standards, providing an anti-corrosion lifetime of 20 years or more.

● What is the wind resistance capacity?

Our standard design supports wind speeds up to 80 Km/Hour (36.9m/s) and is engineered to withstand Grade 8 earthquakes.

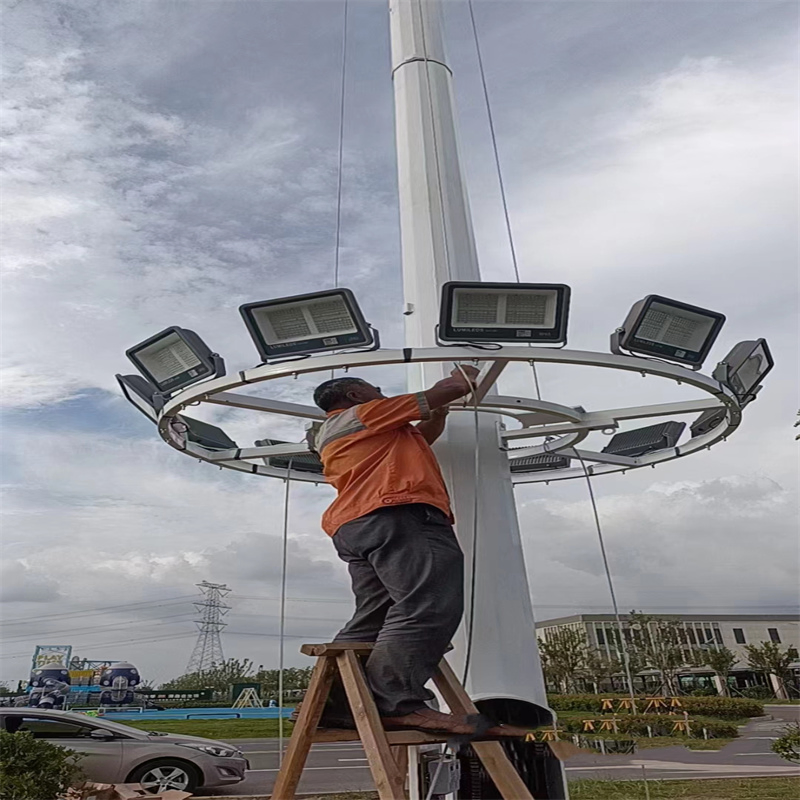

● Does the system include a lifting mechanism?

Yes, the poles feature an internal lifting system with a speed of 3-5 meters per minute, equipped with electromagnetic brakes and break-proof devices.

● What are the lead times for large orders?

Generally, the delivery time is 20 working days for 100 sets of galvanized steel light poles.

● Where can these high mast lights be installed?

They are ideal for large-scale areas including airports, seaports, sports stadiums, highway interchanges, and public plazas.
