25m Stadium High Mast Light Pole Tower with Lifting System

Customization:	Available
Color Temperature:	Warm White
Lamp Body Material:	Aluminum

Send Inquiry

Product Description

iBasic Info

Model NO.

DX-0013

Pole Height

15-35m

Power

400W to 2000W

Projection Distance

80m

Usage

High Way/Airport

IP Rating

IP66

Certification

CCC, CQC, FCC, SASO

Input Voltage

220V

Lamp Source

LED / Sodium / Metal Halide

Metal Protection

Hot Dipped Galvanized

Production Capacity

50000PCS/Month

Origin

China

✓Product Description

High Mast Lighting Pole 15m, 18m, 20m, 25m, 30m, 35m options available.

Production Capacity Manufacturing from 3M-35M with a capacity of 20,000 poles per month.

Quality Control Vertical production lines for optimal control of quality and cost.

Technical Specifications

Material: Q235/SS400 high-quality steel

Welding: Automatic submerged arc welding (GB11345 Grade II)

Surface: Hot dip galvanizing (≥ 86um) & powder painting (≥100um)

Resistance: Anti-wind capacity 36.9m/s; Anti-corrosion ≥ 20 years

Height	From 18 m to 50m
Suit for	Airport, seaport, plaza, stadium, square, highway station, street way, etc.
Shape	Round, Multi-pyramidal, Column form, polygonal or conical
Material	Q345B/A572 (345n/mm2) or Q235B/A36 (235n/mm2)
Lighting Source	400 W - 5000 W high pressure sodium flood light; coverage up to 30,000 m²
Lifting system	Lifter fixed inner pole; speed 3~5 m/min; equipped with brake and break-proof device
Control Device	Electric appliance box with wire control (5m away), time and light control options
Surface treatment	Hot dip galvanized following ASTM A 123, color polyester powder
Wind Speed	80 Km/Hour
Thickness	6 mm to 20 mm

Manufacturing Process

Raw material test → Cutting → Molding/bending → Welding (longitudinal) → Dimension verify → Flange welding → Hole drilling → Calibration → Deburr → Galvanization/Powder coating → Recalibration → Packaging

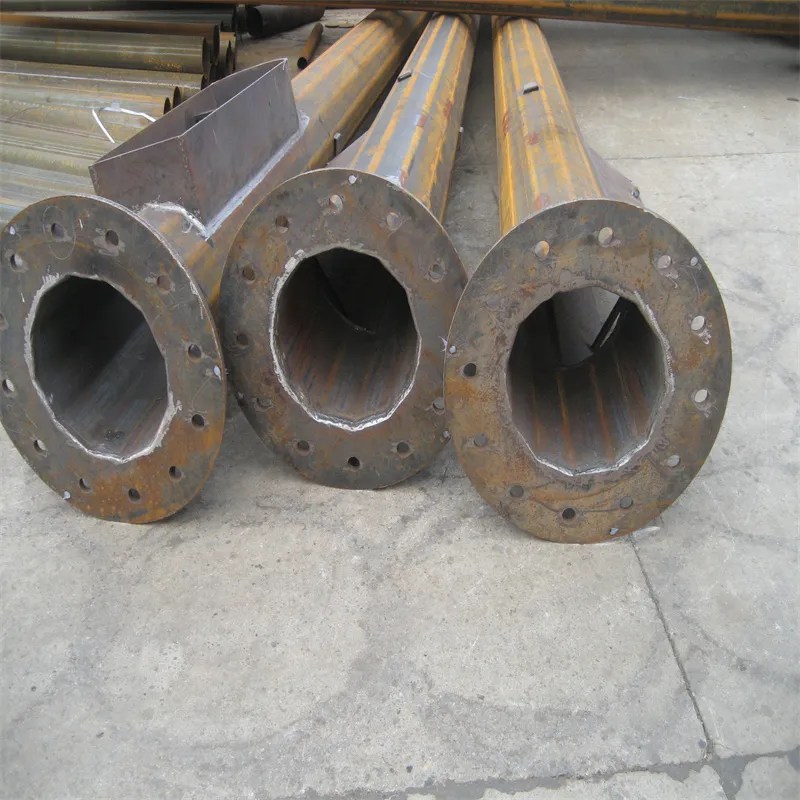

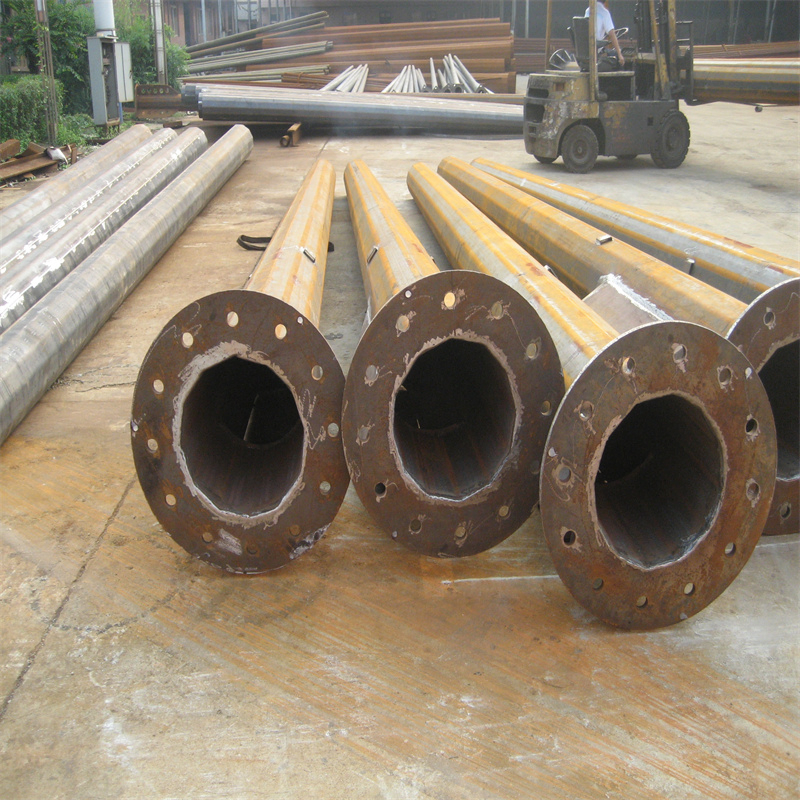

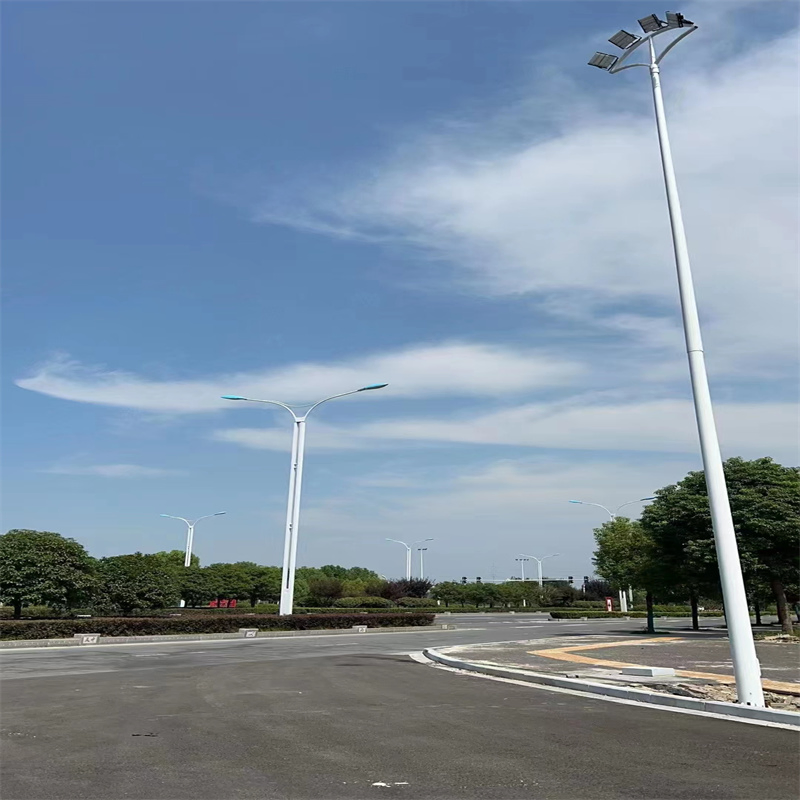

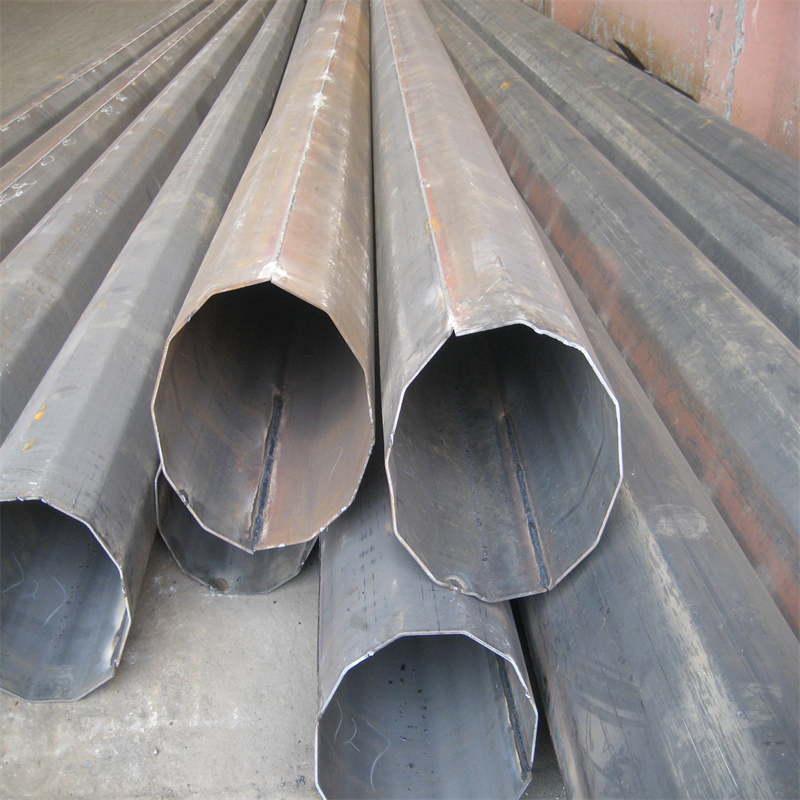

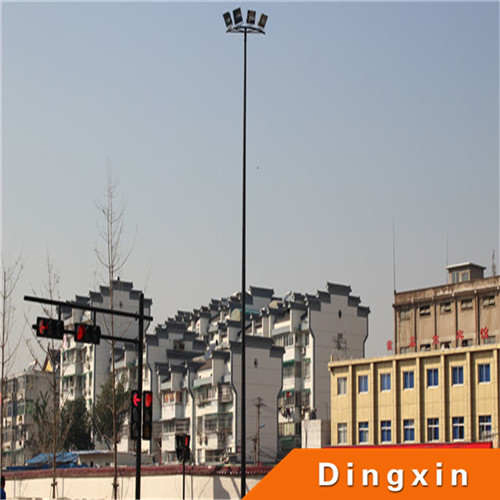

PProduct Gallery

?Frequently Asked Questions

What is the typical height range for these high mast poles?

The poles range from 15m to 35m for standard models, but we can provide solutions from 18m up to 50m depending on requirements.

What materials are used in construction?

We use high-quality steel such as Q235B, Q345B, SS400, and A572 to ensure maximum structural integrity.

How are the poles protected against corrosion?

The poles undergo hot-dip galvanization (minimum 86um thickness) and can be finished with a polyester powder coating (≥100um) for a lifetime of over 20 years.

What kind of wind speeds can these towers withstand?

Our high mast poles are designed to withstand wind speeds of up to 36.9m/s (approximately 80 Km/Hour).

Does the system include a lifting mechanism for maintenance?

Yes, the poles feature a lifting system fixed inside with a speed of 3~5 meters per minute, equipped with safety brakes and manual operation capabilities.

What is the lead time for large orders?

Generally, the delivery time is 20 working days for an order of 100 sets of galvanized steel light poles.
