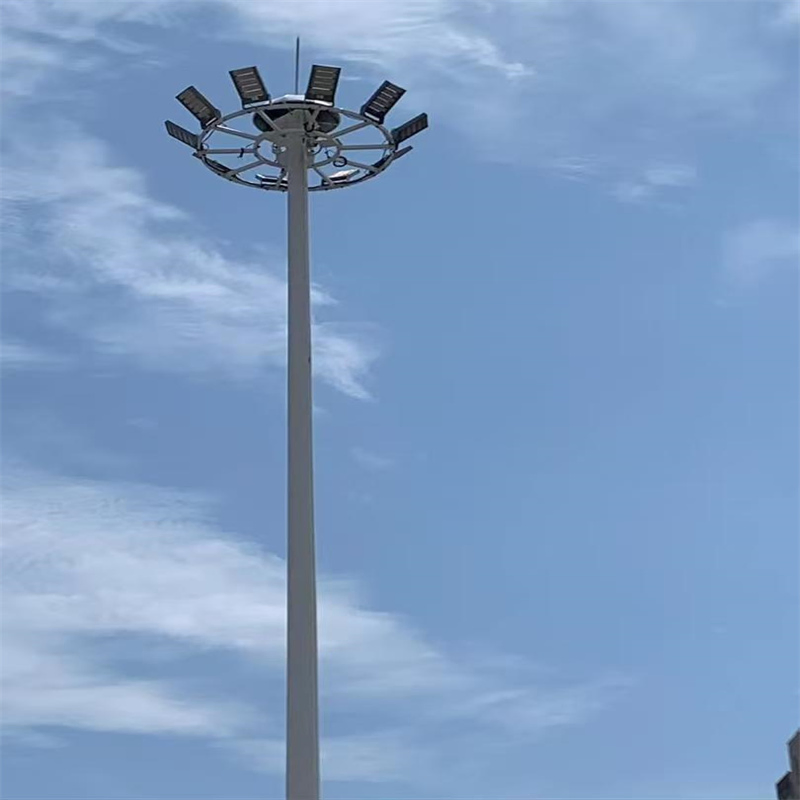

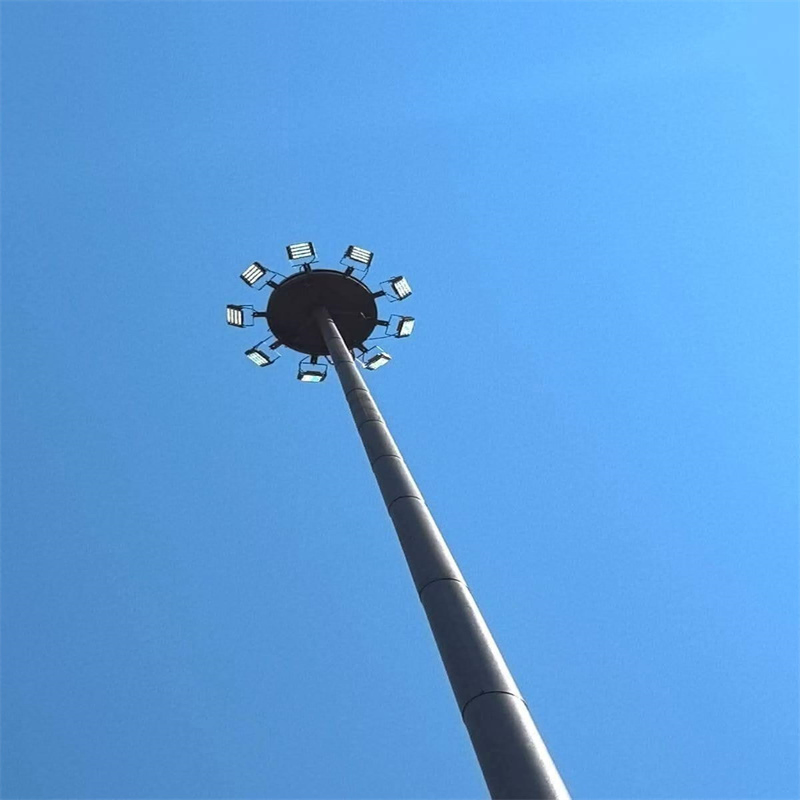

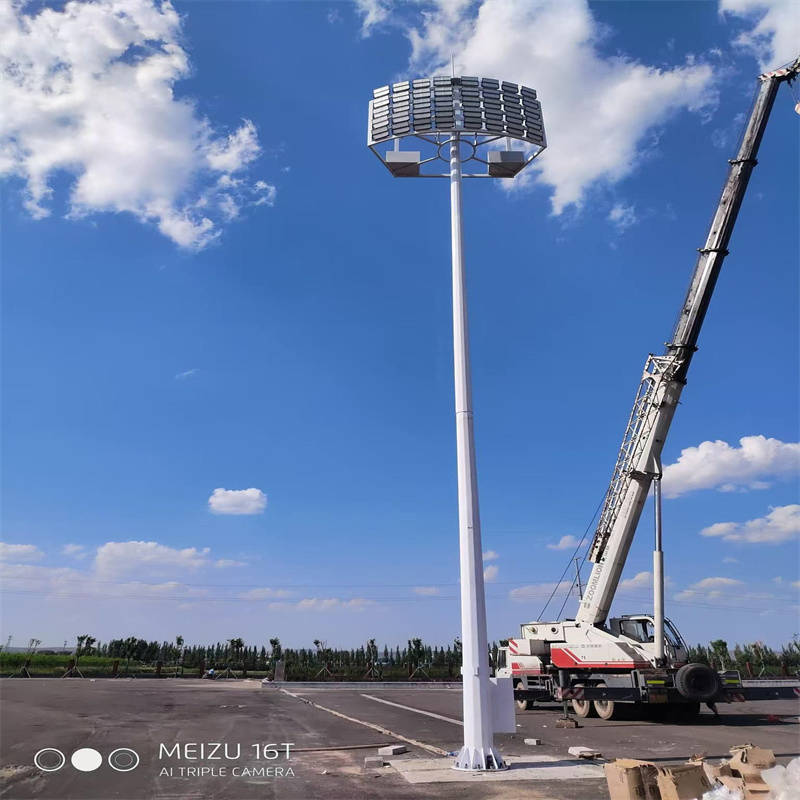

30m Stadium High Mast Light Pole Tower with Lifting System

1 / 5

30m Stadium High Mast Light Pole Tower with Lifting System

Customization:	Available
Color Temperature:	Warm White
Lamp Body Material:	Aluminum

Send Inquiry

Product Description

📋 Basic Information

Model NO.

dxse5

Pole Height

15-35m

Power

400W to 2000W

Projection Distance

80m

Usage

High Way/Airport

IP Rating

IP66

Certification

CCC, CQC, FCC, SASO

Input Voltage

220V

LED Chips Brand

HPS/Metal Soudium

Lamp Source

LED Lamp /Sodium Light/Metal Halide Lamp

Shape

Round /Conical/Octagonal/Polygonal

Metal Protection

Hot Dipped Galvanized

Capacity

50000PCS/Month

Origin

China

📷 Product Showcase

⚙ Core Features

✔
Available Heights: 15m, 18m, 20m, 25m, 30m, 35m high mast lighting poles.
✔
High-Quality Material: Steel Q235/SS400 from BAOSTEEL Group.
✔
Durable Surface Treatment: Hot dip galvanizing (≥ 86um thickness) and powder painting (≥ 100um).
✔
Wind Resistance: Engineered to withstand wind speeds up to 36.9m/s.
✔
Lifting System: Efficient internal winch with a lifting speed of 3~5 meters per minute.

📊 Technical Specifications

Height	From 18 m to 50m
Suit for	Airport, seaport, plaza, stadium, square, highway station, street way, etc
Shape	Round, Multi-pyramidal, Column form, polygonal or conical
Material	Q345B/A572 (yield strength>=345n/mm2), Q235B/A36 (yield strength>=235n/mm2)
Lighting Source	400 W- 5000 W high pressure sodium flood light, light extension: up to 30,000 m²
Lifting system	Internal lifter with speed of 3~5 meter per minute; Equipped with anti-ferromagnetism brake and break-proof device

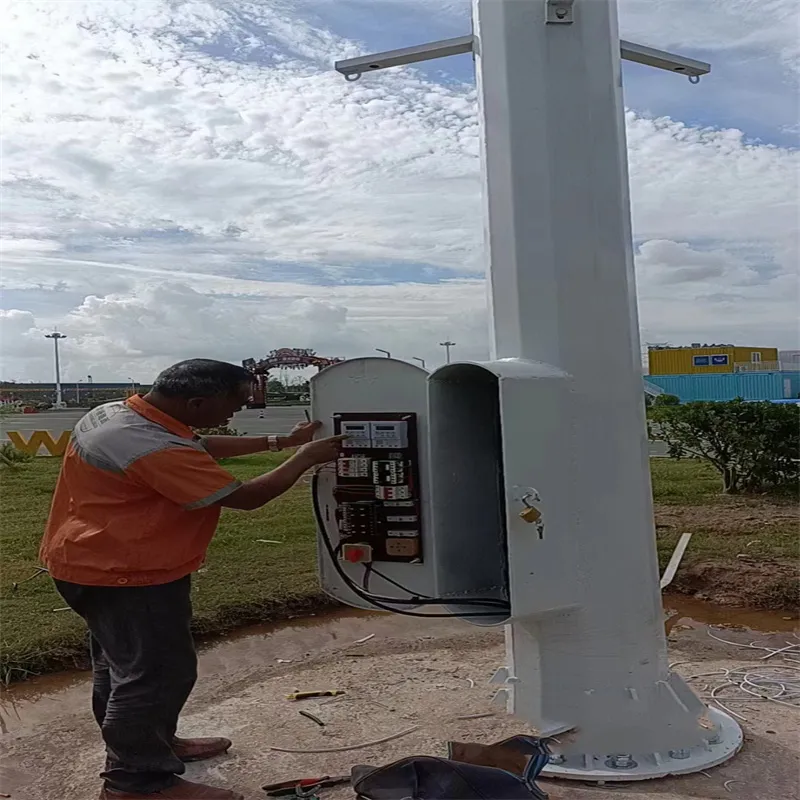

Control Device	Electric appliance box with wire-controlled lifting operation (up to 5 meters distance). Time and light control available
Surface treatment	Hot dip galvanized following ASTM A 123, color polyester power coating
Wind Resistance	Designed for 80 Km/Hour
Welding	Internal and external double welding, past flaw testing
Thickness	6 mm to 20 mm

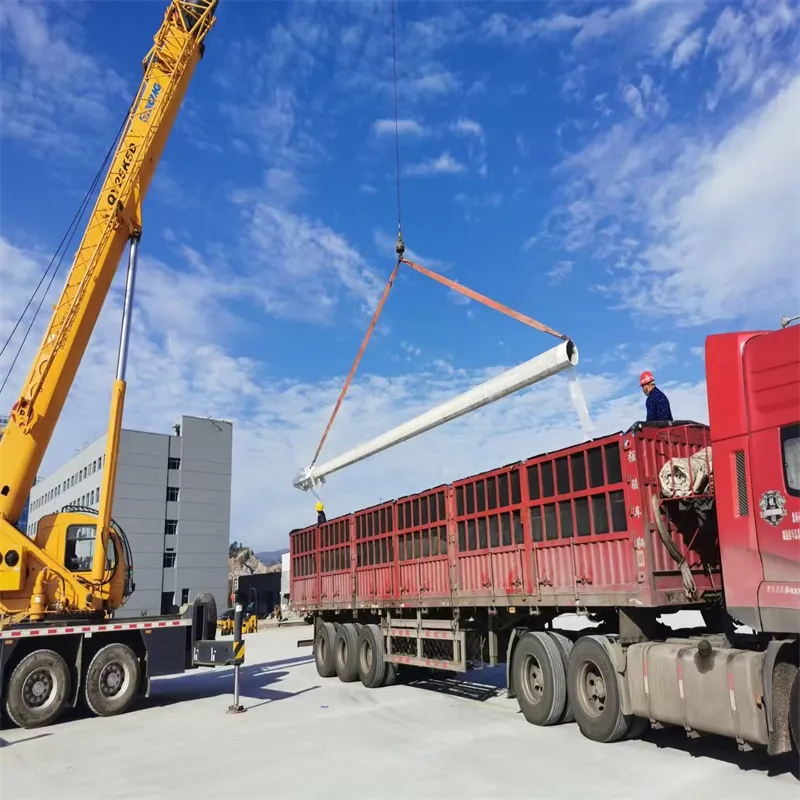

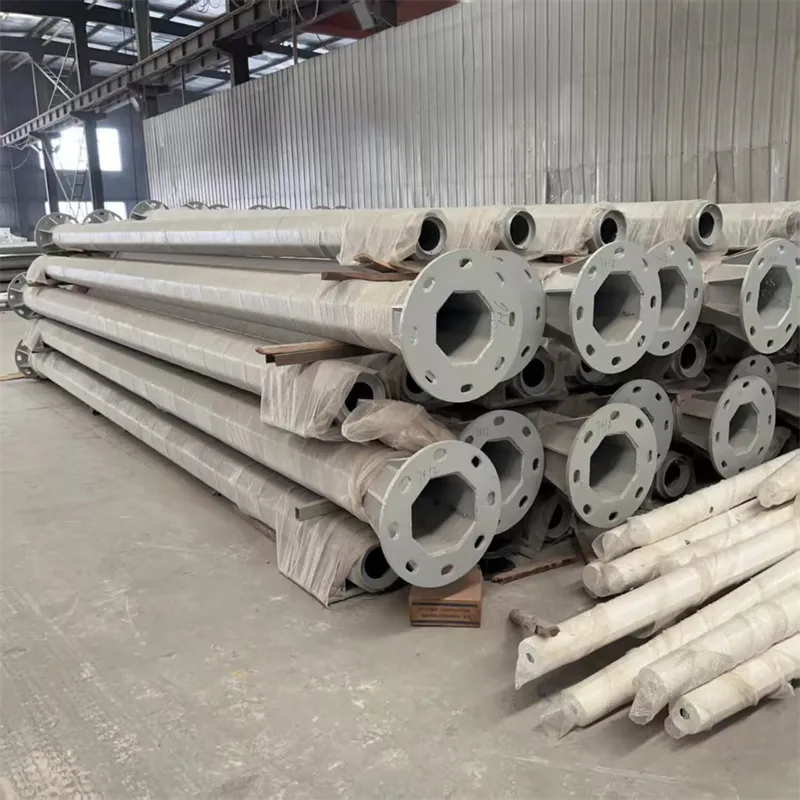

Packaging	Bulb/felt wrappings for street lighting poles; Mat or straw bale at top and bottom

❓ Frequently Asked Questions

1. What are the common applications for these high mast light poles?

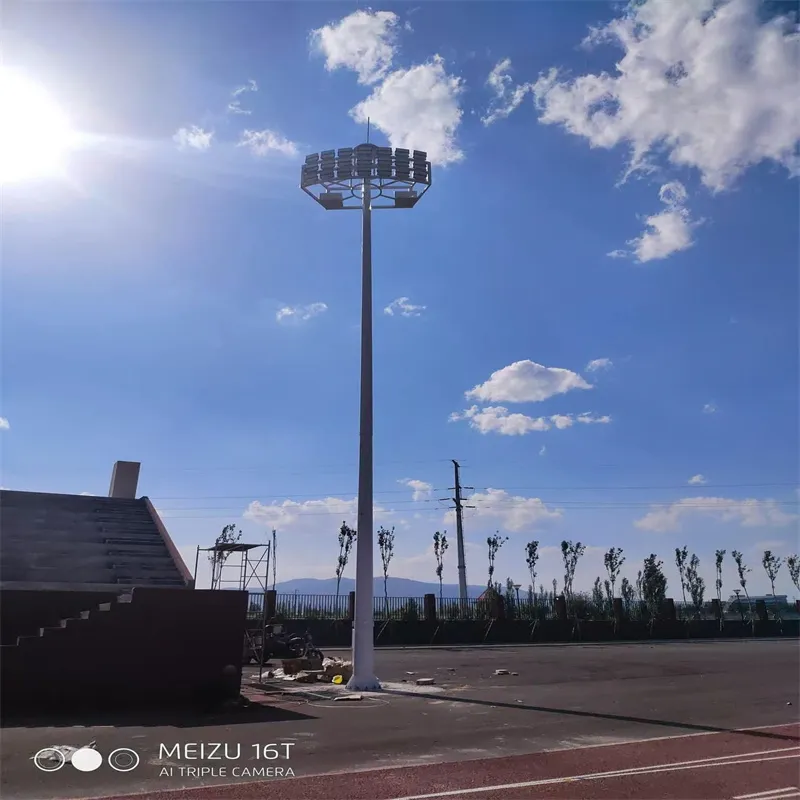

These poles are ideal for large-scale areas such as airports, seaports, stadiums, highway interchanges, plazas, and large parking lots.

2. How is the pole protected against rust and corrosion?

The poles undergo a hot-dip galvanization process according to ASTM A 123 standards, followed by an optional polyester powder coating for double protection, ensuring a lifetime of over 20 years.

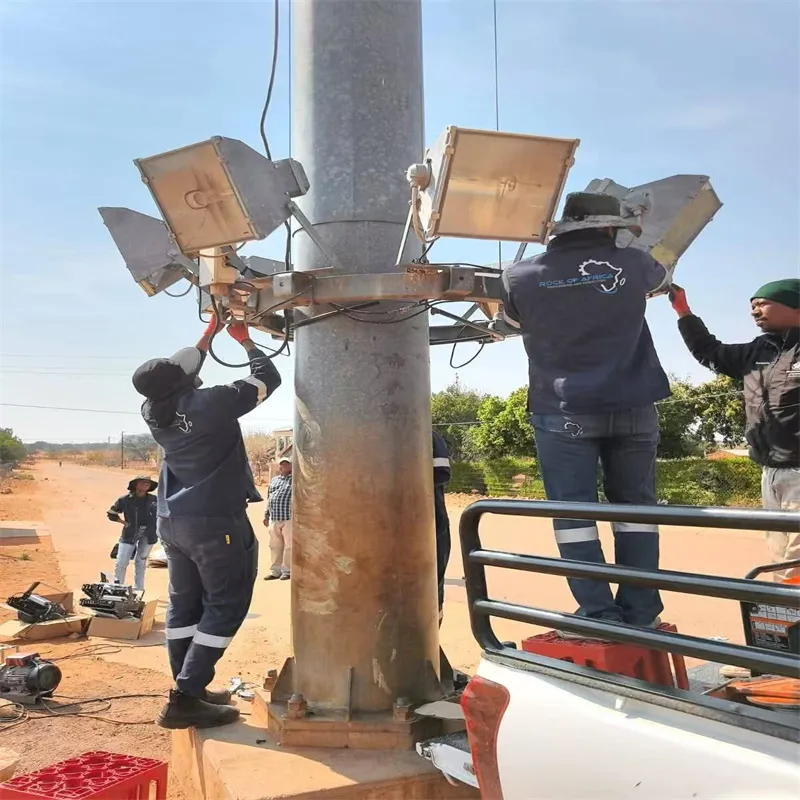

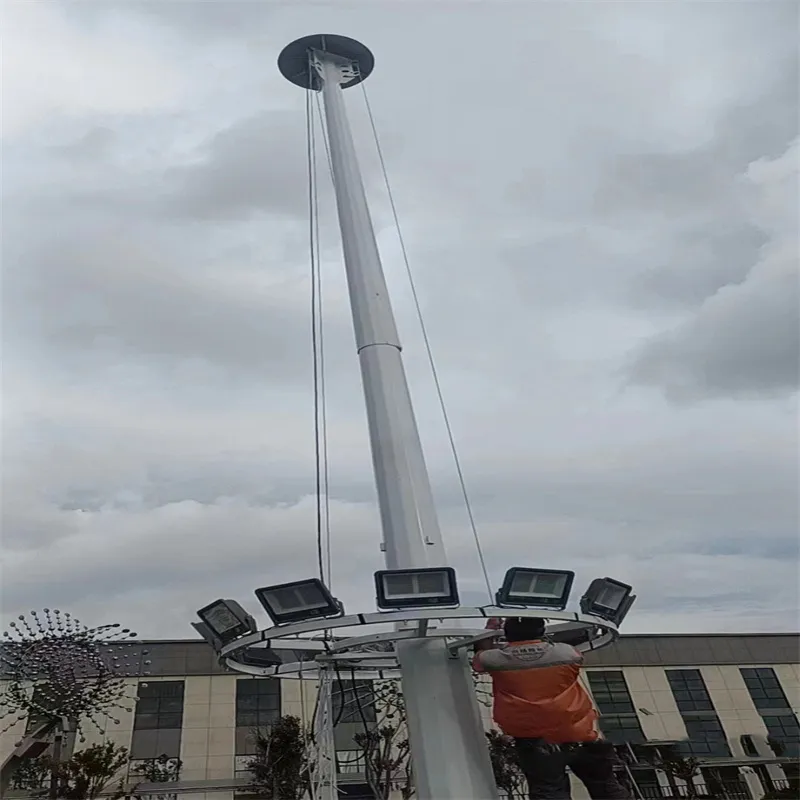

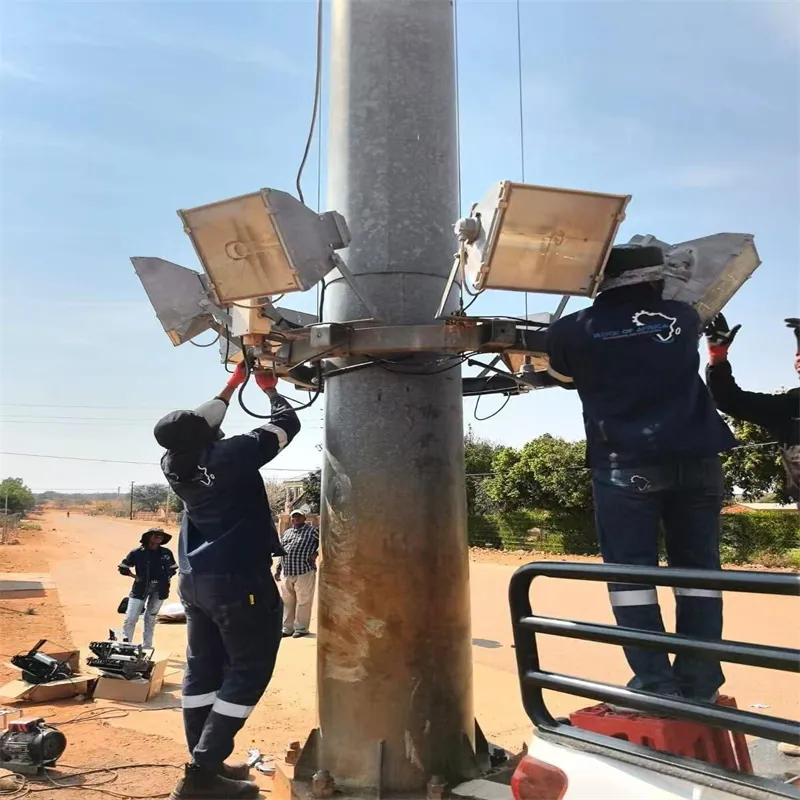

3. Does the system include a mechanism for easy lamp maintenance?

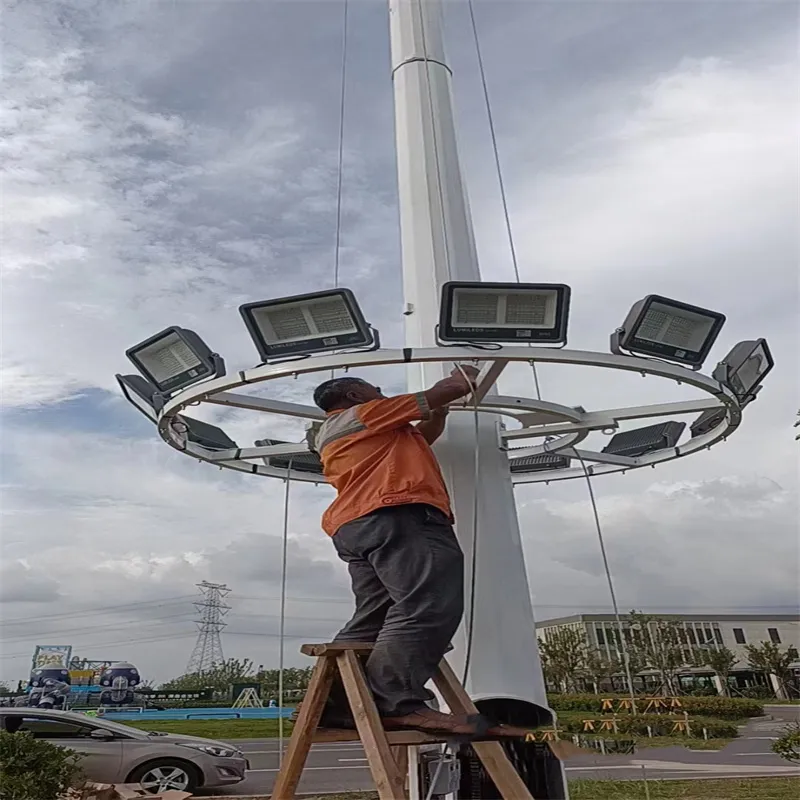

Yes, it features an internal lifting system with a speed of 3-5 meters per minute, allowing for easy lowering of the light plate for ground-level maintenance.

4. What wind speeds can the high mast tower withstand?

The standard design is engineered to withstand wind speeds of up to 80 Km/Hour (approx. 36.9m/s) and is seismic resistant up to grade 8.

5. What types of lamps can be installed on the mast?

The system is versatile and compatible with LED lamps, High-Pressure Sodium (HPS) lights, and Metal Halide lamps, with power ranging from 400W to 2000W per fixture.

6. What materials are used in the construction?

We use high-quality steel such as Q235B/A36 and Q345B/A572, providing high yield strength and structural integrity for tall installations.
